AGGREGATE TRANSFER CONVEYORS

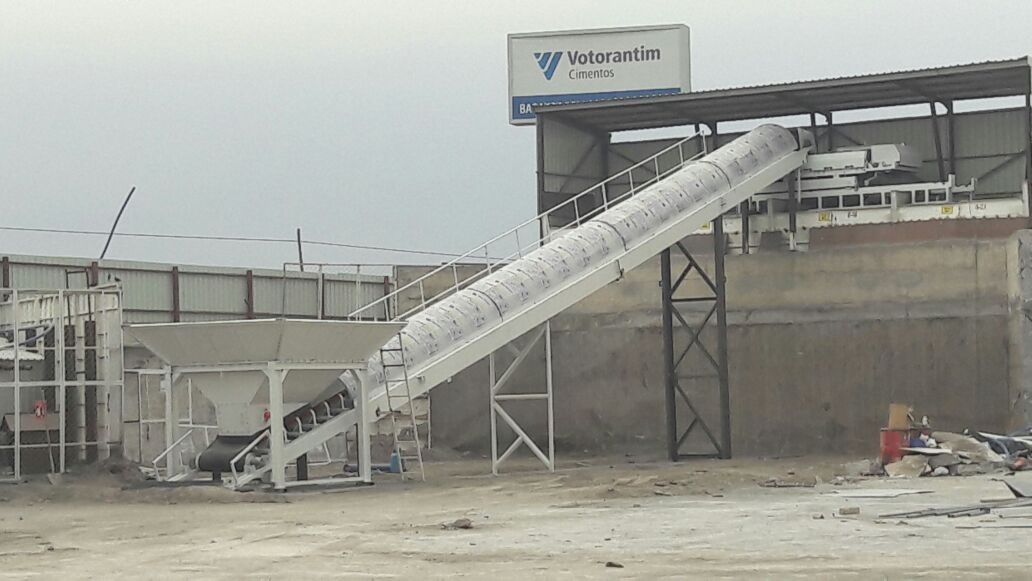

AGGREGATE PRELOADING HOPPER  : 12 M3 capacity, 3,3x4,3 meter dimension and it can be loaded from 3 way, there is 1 each vibrator, special tension system on wall, aggregate flow arrangment system in hopper, menhole. Also it can be use for aggregate heating in this preloading conveyor.

BUNKER 3300X4300 EBATLARINDA OLUP 3 YÖNDENDE YÜKLENEBİLİR. BU SAYEDE GENİŞ STOK ALANI VE LOADERİN HIZ KABİLİYETİ MAKSİMUMA ÇIKARILMIŞTIR.

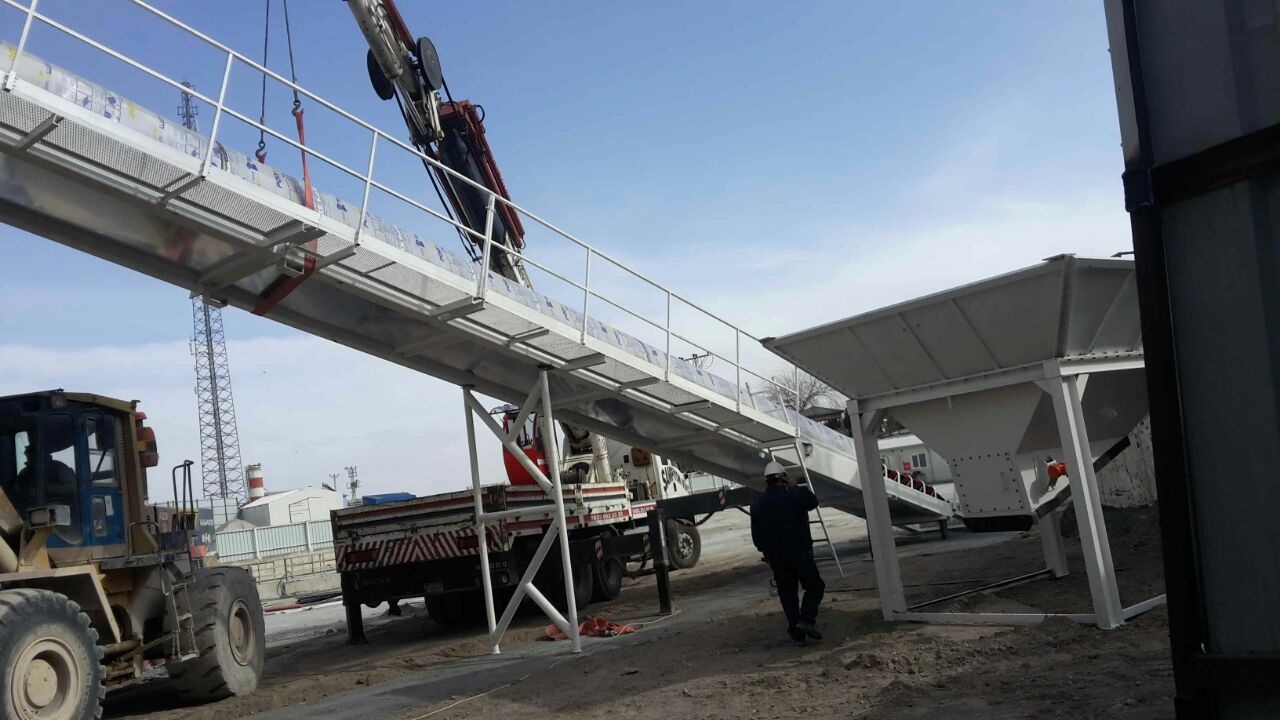

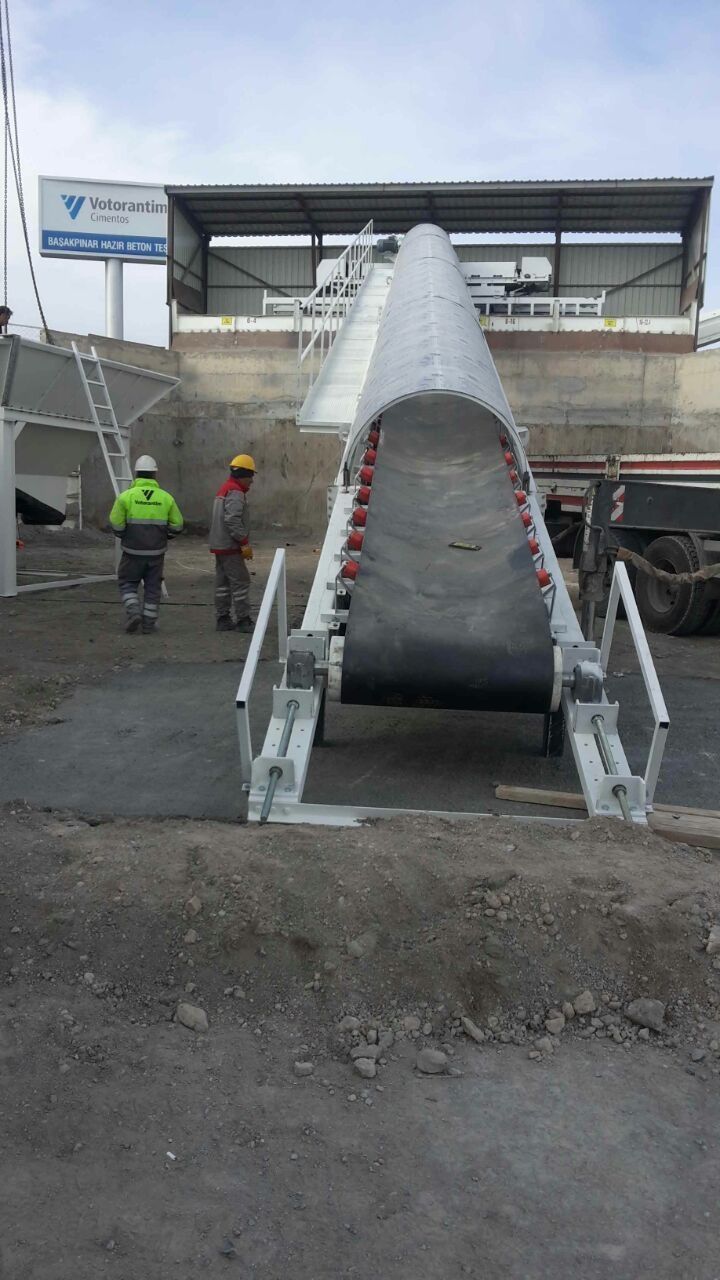

AGGREGATE TRANSFER CONVEYOR:

1000X26000 belt conveyor are made of 200x400 profile for high strenght , complete bolted system and it banbe  transport in all kind of container. Polycarbon roof resist to snow,wild and also it gives excellent maintenance and control of conveyors.

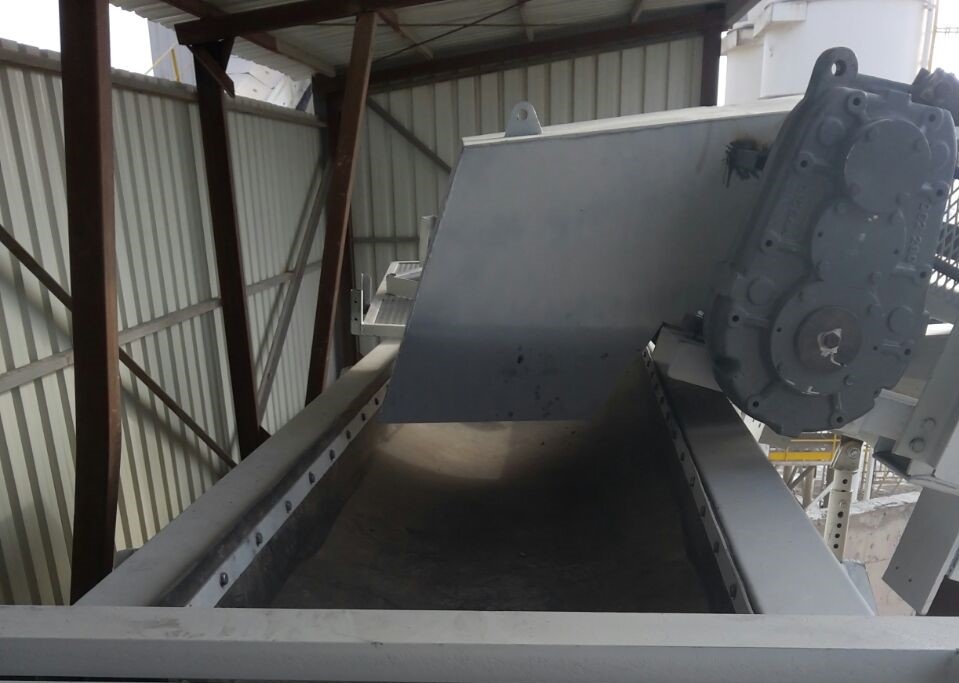

SKF or FAG German bearings are used in conveyors, special scrapers prevent to aggregate fall in ground. Motor and gearbox are connected to each other with pulley system so conveyor velocity can be increased or decreased depends on properties of aggregate.

SHUTTLE ON AGGREGATE HOPPER

1,3X9 MT high strenght chassis of rail installed on aggregate compartment and special crane wheel system are used in shuttle . It moves on rail righ and left direction.

DOUBLE WAY CONVEYOR ON SHUTTLE: 1000x5500 mm CONVEYOR İNSTALLED ON SHUTTLE BY USING BOLTS. It will moves on shuttle and can be rotated right and left.
