Besis Machinery is dealer of Euromecc and can supply only Euromecc orginal parts , All parts in our webpage are aftermarket- equivalent spare parts and compatible to European mixers for example Sicoma,Simem, IME,CM,Cuoghi,Elba,Betonmecc etc.
We can give offer with dimension of parts, OEM codes of parts, some measurable dimension of mixers. Our parts are tested a lots of user and re-ordered, cheap and reliable Besis products can be used in wear and teared parts without any problem
1- CAST IRON BADY WEAR PLATES or 400 TO 600 HB wear Plates FOR TWINSHAFT MIXER
2- LEFT AND RIGHT SIDE WEAR PLATES,
3- ARMS- CAPS PADDLES, SHAFT COUPLINGS, -
4- SEAL AND SUPPORT PARTS, DUST GASKETS, OIL GASKETS, LIFE TIME GASKETS, COUPLINGS GEARBOX SIDE, COUPLINGS SHAFT SIDE, GROOVED SHAFTS, JOINTS, SPLINED SHAFTS,
5- ARM CARRYING MAIN SHAFTS
6- GATE WEAR PARTS, AUTOMATIC GREASING PUMP AND COMPLETE SYSTEM, HYDRAULIC CYLINDERS, GEARBOX,MOTORS AND OTHERS
7- PLANETARY MIXER ARMS- PADDLES- LINERS, BOTTOM AND CIRCULAR WALL PLATES
EUROMECC ITALYAN OTOMATİK TEMİZLEME SİSTEMİ (SU BASINÇLANDIRMA VE ELEKTRONİK KONTROL PANELİ HARİÇ)
EUROMECC/ ITALYAN AUTOMATIC CLEANING SYSTEM WITHOUT GROUP OF WATER PRESSURIZING AND ELECTRIC CONTROL PANEL TEM
Karıştrıcı tankı içerisindeki Otomatik Yıkama sistemi aşağıdaki özelliklere sahiptir.
Automatic cleaning system inside the tank of the mixer having the following

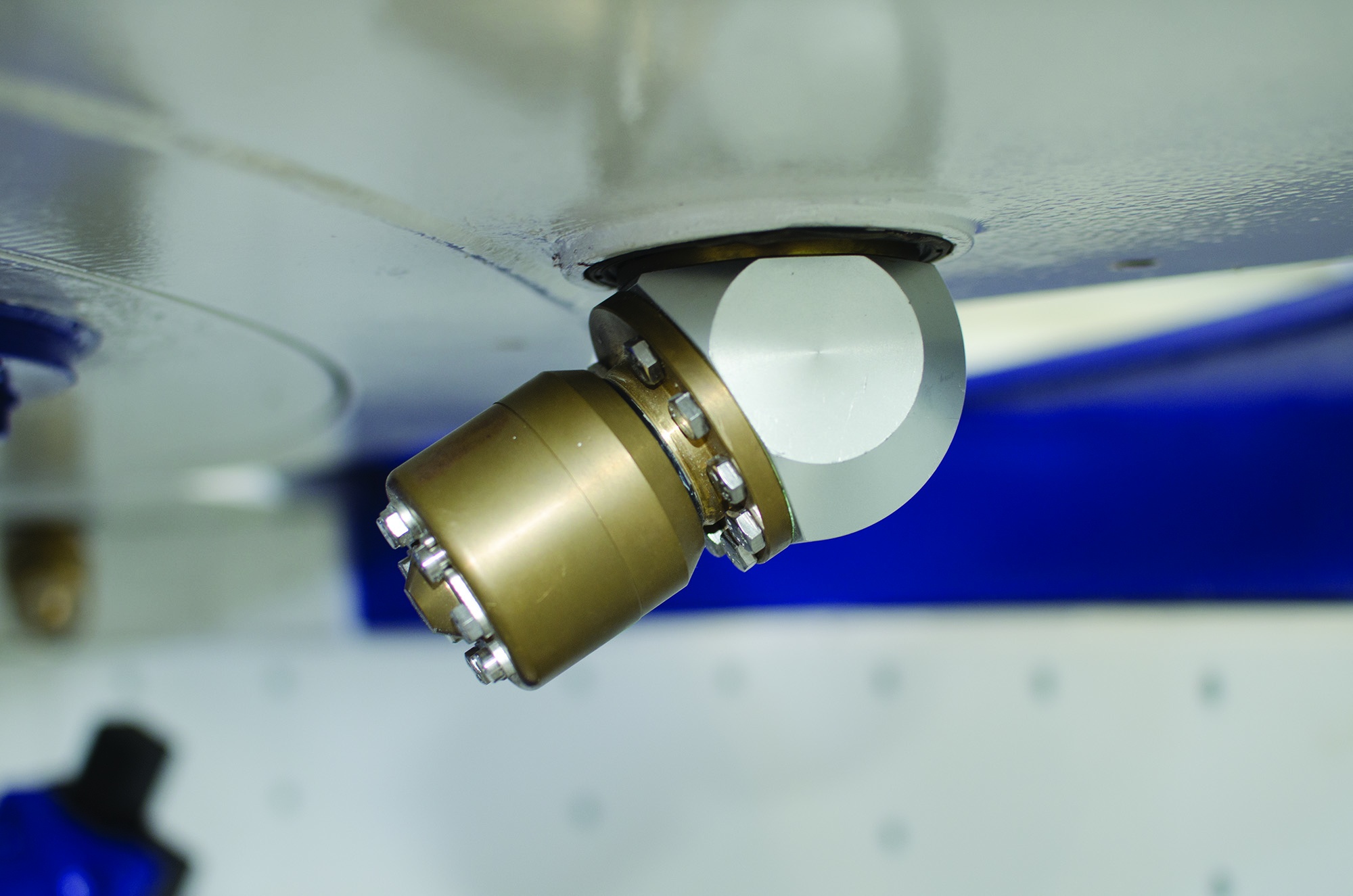

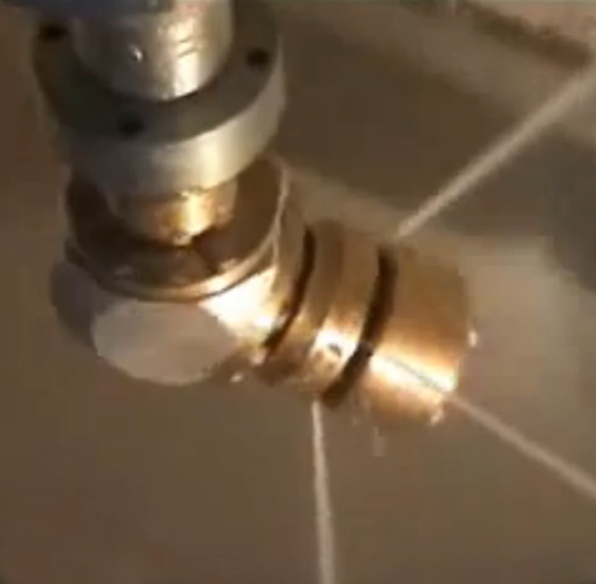

- N.4 motorized washing unities with rotating head to fix on the top of the
mixer cover. The washing unities have many jets and each one has a
movement of 360° involving every fix and mobile part inside the mixer from
every angle shots. The rotating unities enter inside the mixer during the
washing phase, and then they position themselves on a protected channel
during the other phase of concrete production.
- Swinging nozzle provided with 15 m of flexible-pipe working at high
N.B. Feeding water must be clear, cleaned, without waste parties
suspended in, and not salted.
SU BASINÇLANDIRMA SİSTEMİ VE SU TANKI
GROUP OF WATER PRESSURIZING WITH WATER TANK
Group of water pressurizing by a piston-pump (50 bar) - 9,2 kW, 400 V, 50 Hz, completed with pulleys and belts,
pressure regulator, pressure gauge, safety pressure switch.
Metallic structure for pump-motor supporting. Provided with safety timing case
Water tank for washing with level regulation valve, flexible pipe, water feeding/return
ELEKTRONİK ONTROL PANELİ
ELECTRIC CONTROL PANEL
EKİPMANIN MANUEL VEYA OTOMATİK YIKAMA SEÇENEKLERİNİN OLDUĞU PLC İLE DONATILMIŞ KONTROL PANELİNE SAHİPTİR.
Electric panel of command and control with PLC for the automatic and manual working of equipments.
